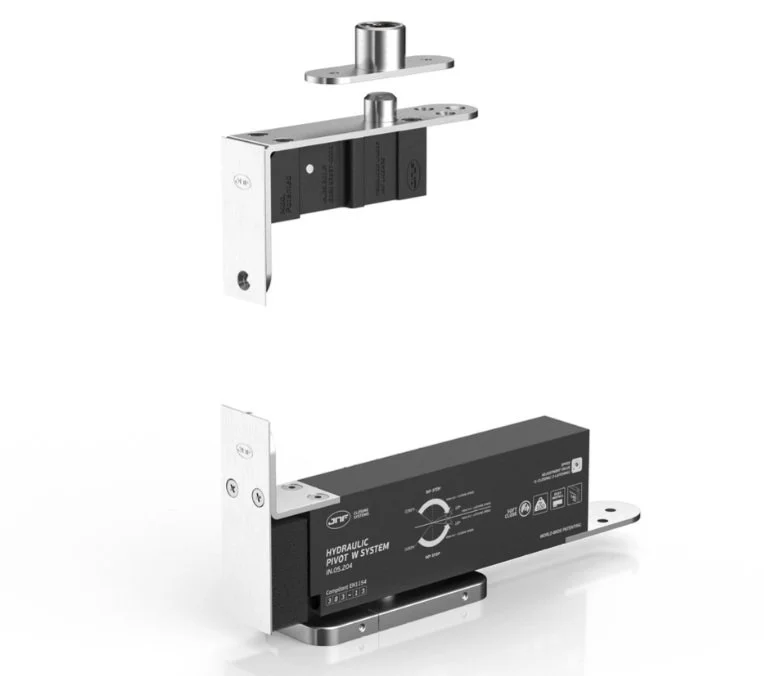

Hydraulic pivot set for double action or rebated wood doors.

Max. door width 1000mm.

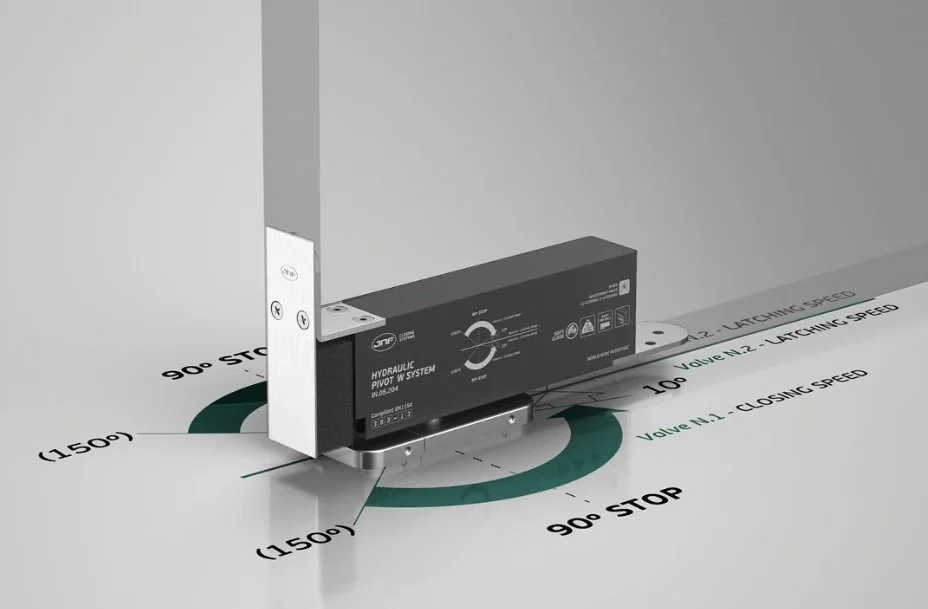

Two speeds closing valve regulation.

Material EN 1.4301 (AISI 304)

Minimum door thickness: 40 mm (1-9/16”)

Max Weight 100 Kg (220 lb.)

International patent.

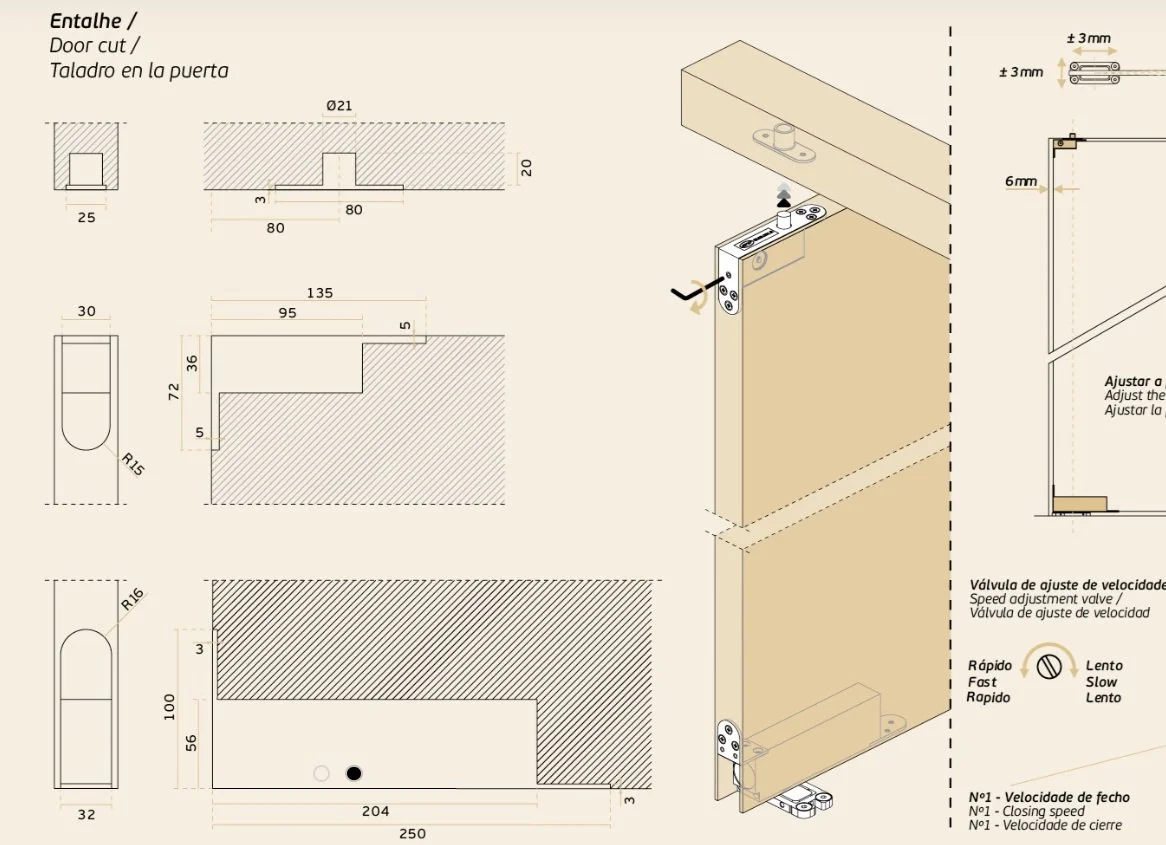

The rotation point of the door can be from 50mm to the center of the door
